Basket Strainers

Basket Strainers

Basket Strainers are extensively used to strain foreign mattersfrom pipelines andto protect expensive pumps, meters, valvesand mechanical seals. These strainers reduce downtime forcleaning due to their inherent construction of bolted cover and easy removal of screen. They are also ideal for fine Straining.

End Connection : Flanged End
Pressure Rating : ANSI B 16.5 CLASS :150, 300 & 600
Screen available : 2 mesh to 200 mesh
Sizes available : 15 NB to 900 NB
Standard Free Flow Area : 300% Pipe Flow Area.
Higher Free Flow Area on demand.
Pressure Drop : For ideal flowrate
0.03 BAR in 100% clean condition
0.08 BAR in 50% clogged condition
Special Strainers on demand : Rubber lined, PTFE lined,Jacketed, Large Screen Area

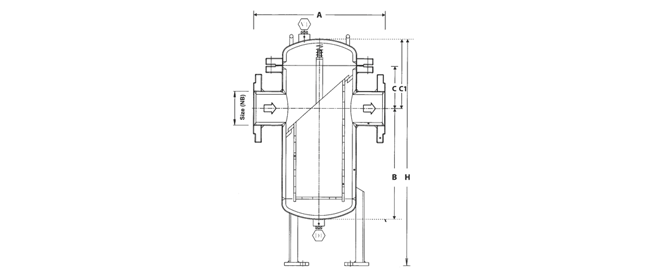

DIMENSIONS
SIZE NB 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
A+/-3 300 320 350 410 460 470 520 610 740 800 870 980 1020 1150 1400
B+/-3 220 240 300 350 380 460 550 750 860 870 900 1050 1150 1400 1520
C+/-3 100 100 120 130 160 170 190 230 260 310 350 370 400 500 550
C1+/-10 - - - - - - - - - - - - 600 700 780
H- 330 350 450 510 570 660 780 1350 1530 1630 1800 1960 2200 2500 2800
